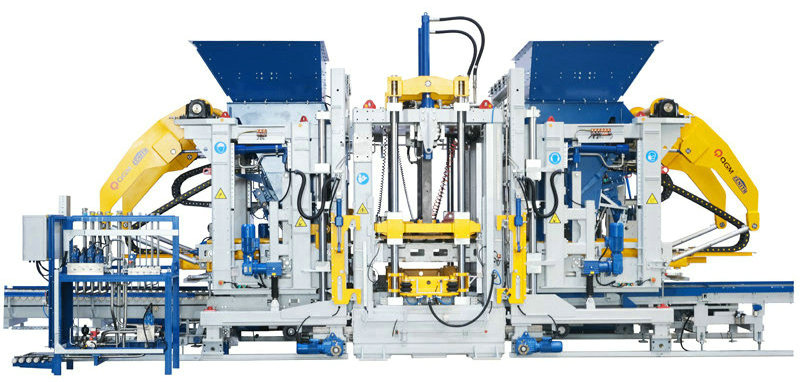

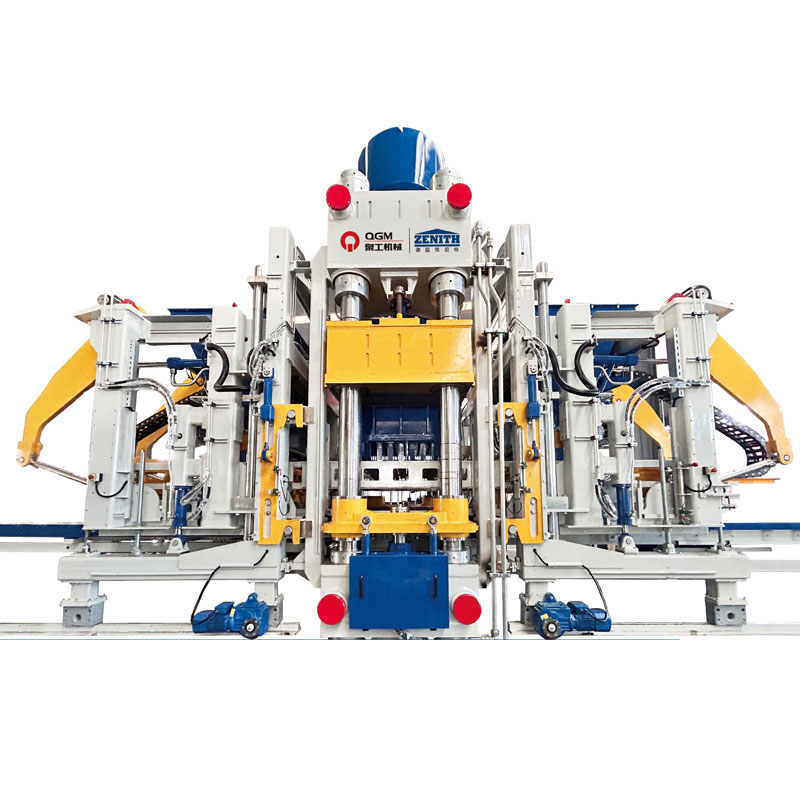

ZN2000C Concrete Block Machine

ZN2000C Concrete Block Machine samfuri ne na kansa. Yana da babban matakin hankali da sarrafa kansa, kuma yana yin cikakken amfani da manyan fasahohin zamani na zamani kamar najasa da tsarin bayanai, waɗanda ake amfani da su sosai wajen gina sabbin garuruwa da biranen soso.

Siffofin:

Teburin girgiza dual, Motoci servo takwas (na zaɓi) Manyan kayan aiki

Haɗuwa na yau da kullun don sauƙin kulawa

Babban iya aiki, mafi girman yawan aiki

Girman pallet 1400x1400/1300mm

Samar da yanki 1320x1350/1250mm

Tsayin samfurin 40-500mm

Yawan tubalan Tubalan Tuba: 18 tubalan/mould (390x190x190mm)

Madaidaicin tubalin: 105 tubalan / mold (240x115x53mm)

Tubalin hanya: 66 tubalan / mold (200x100x60mm)

Girman kayan aiki Kimanin. 10,000

Kimanin 4,700

Kimanin 3,400

Tsarin girgiza Matsakaicin ƙarfin motsa jiki na tebur mai girgiza: 200/kN

Matsakaicin ƙarfin motsawa na shugaban latsa: 40/kN

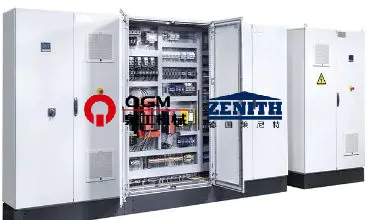

Siffofin lantarki Jimlar iko (bayani): 231/kW

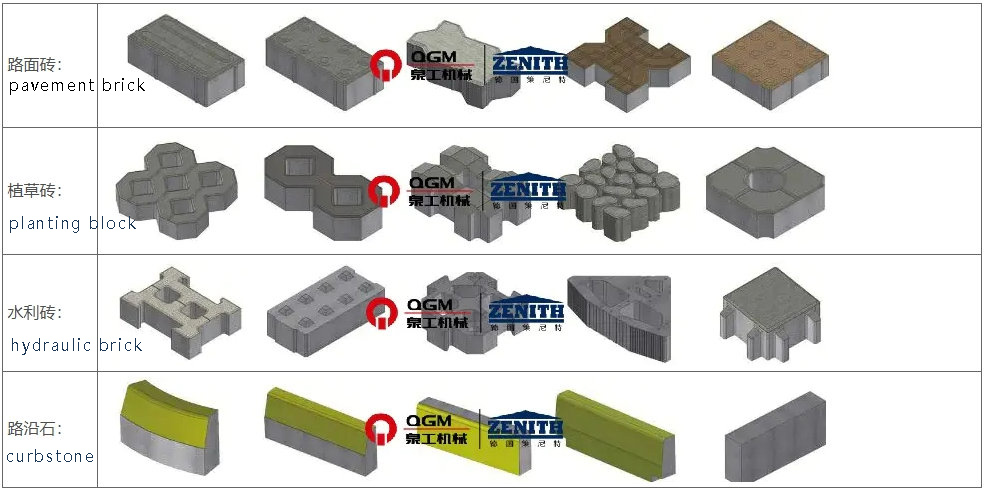

Tsarin tsari na samfuran bulo da kayan aiki ke samarwa

Fa'idodin Fasaha

1. High-quality frame zane na Jamus version

Babban firam ɗin yana ɗaukar tsarin firam ɗin walda mai ƙarfi mai ƙarfi wanda fasahar haƙƙin mallaka ta Zenit ta ƙera, wanda aka keɓance shi ta hanyar ƙarfe na musamman da aka keɓance, tare da ƙira mai ma'ana, har ma da walƙiya mai kyau, kuma gabaɗayan firam ɗin yana jure wa tsufa na jiyya don tabbatar da inganci mai girma da kwanciyar hankali na firam. Tsarin ƙira na ci gaba yana sa babban firam ɗin zai iya faɗaɗawa, kuma ana iya ƙara aikin buɗewa da rufewa na gefe, aikin cirewa (a allo), aikin dasa allo na polystyrene, da sauransu daga baya.

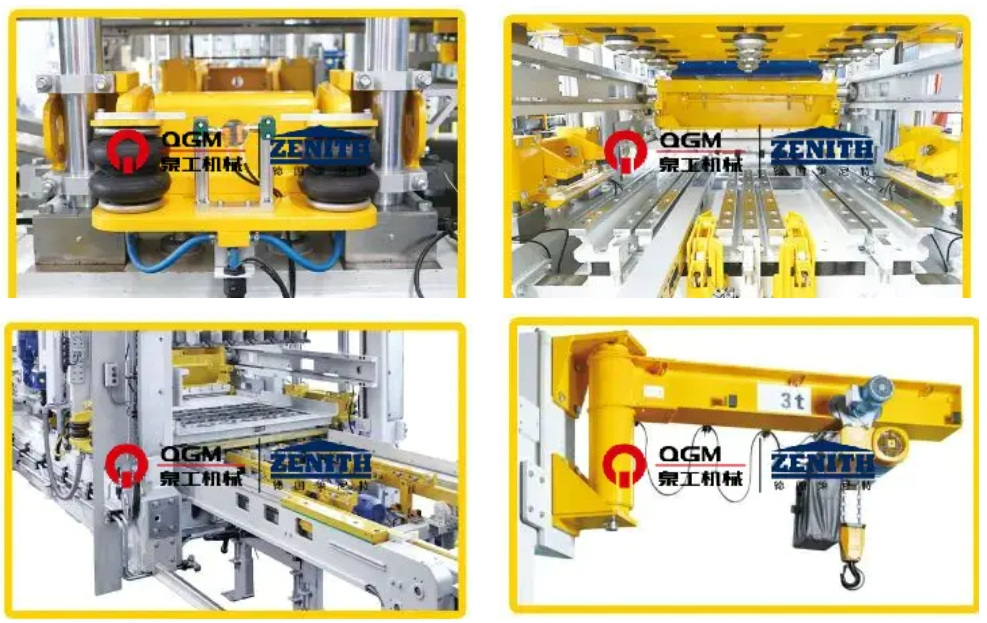

2.Automatic sauri mold canji tsarin

Lokacin da mold aka canjawa wuri zuwa rundunar matsayi, ta dagawa tsarin gane atomatik mold canji a kan sauri mold canji na'urar. Na sama da ƙananan gyare-gyare ana manne ta atomatik ta hanyar pneumatically, wanda ke da aminci, inganci, mai sauƙi don aiki da dacewa don kulawa. Ya ƙunshi musamman:

Pneumatic mold clamping na'urar: Ya fi kunshi mold sashi da pneumatic clamping sanduna a bangarorin biyu, wanda taimaka a clamping da kuma gyara molds da damping a lokacin da rundunar inji daukawa pre-vibration da babban vibration, don cimma mafi kyau vibration sakamako da kuma tsawaita rayuwar sabis na molds.

Pneumatic indenter makullin na'urar: an gyara mai shigar da na'urar ta matsa tare da jakar iska, wanda zai iya sauƙi da sauri maye gurbin mai shigar da shi, rage lokacin sauyawa da shigarwa, da kuma tabbatar da ingantaccen docking na ƙananan ƙirar ƙira da mai shiga na sama.

Na'urar Shigar Kayan Wuta ta Wutar Lantarki: Ana amfani da na'urar da ke ɗaura gyaggyarawa don shigar da gyaggyarawa a cikin babban na'ura da kuma ciyarwa da cire gyaggyarawa daga na'urar ta hanyar ɓangarorin lantarki, wanda za'a iya amfani da shi a yawancin gyare-gyaren da ke cikin kasuwa, kuma ana iya amfani da braket na musamman don yin gyare-gyare na musamman.

Na'urar Canjin Motsi: An sanya shi a kan firam ɗin babban injin, ana amfani da shi don ɗagawa da ɗora kayan gyare-gyaren lokacin da ake canza gyare-gyare, sanye take da sarkar lantarki da na'urar tafiya ta lantarki.

3. Tsarin ƙira

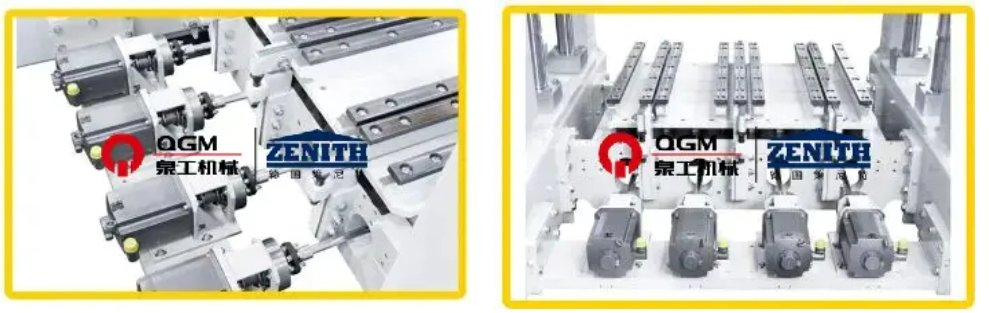

4. “Ultra-dynamic” servo vibration tsarin:

"Ultra-dynamic" servo vibration fasahar wani nau'i ne na babban inganci, tsarin girgiza kai da kai wanda aka tsara musamman don na'urorin bulo; Motar servo na iya yin amsa mafi sauri a cikin mafi ƙarancin lokacin amsawa, fahimtar mafi girman aikin rawar jiki, rage adadin siminti da aka yi amfani da shi da rage sake zagayowar samarwa, samar da samfuran siminti mai ƙarfi; tsarin girgizawa na iya daidaitawa da buƙatun samfuran kankare daban-daban. Motar servo na iya yin saurin amsawa a cikin mafi ƙarancin lokacin amsawa don gane mafi girman aikin rawar jiki, wanda zai iya rage adadin siminti, rage sake zagayowar samarwa, da kuma samar da samfuran siminti mai ƙarfi; ana iya daidaita tsarin girgizawa da sauƙi don samar da buƙatun samfuran kankare daban-daban.

8 raka'a girgiza tare da ma'auni na inji da aka saita daban-daban ta hanyar 8 servo drives;

8 servo Motors, daban-daban da aka ɗora akan igiyoyin keɓewar girgizar waje na goyan bayan motar;

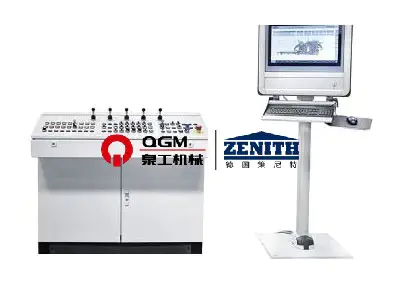

5. Daidaitaccen tsarin kula da servo

Ta hanyar amsawar siginar, sarrafa lokaci da saurin girgizawa, sarrafa motsin aiki tare, jiran aiki mai sauri, za'a iya kammalawa a cikin ɗan gajeren lokaci na girgizawa da kawar da girgizawa, don taimakawa wajen rage yanayin gyare-gyare, kuma mafi kyawun tasirin birki. Ta hanyar matsayi da sauri sau biyu rufaffiyar madauki, sarrafa ƙarfin motsa jiki kawai yana aiki a cikin madaidaiciyar hanya, haɓaka ƙarfin haɓaka mai tasiri mai tasiri, kuma a lokaci guda kauce wa lalata ƙarfin motsa jiki na kwance ga na'ura, tsawaita rayuwar sabis na kayan aiki, da kuma iya yin saitunan daban-daban don buƙatun samfur daban-daban, da kuma samar da samfurori masu inganci.

Shugaban latsawa, firam ɗin ƙira, tara mota da motar masana'anta ana sarrafa su ta hanyar bawul ɗin madaidaiciyar madaidaiciya tare da ra'ayoyin spool, wanda ke da lokacin amsawa mai sauri; yanayin kula da rufaffiyar madaidaicin madaidaicin firikwensin / encoder-PLC-daidaitaccen bawul-Silinda an karɓi shi, wanda ya sa ikon sarrafawa ya fi daidai, kuma aikin silinda sauri da kwanciyar hankali; tashar hydraulic tana ɗaukar famfon piston mai canzawa, wanda baya fitar da mai mai matsa lamba kuma yana sauke famfo lokacin da tsarin injin ya kai matsa lamba don rage yawan kuzari; tashar hydraulic tana ɗaukar wadataccen mai samar da mai, wanda ke rage yawan kuzari; kuma tashar hydraulic tana ɗaukar wadataccen mai na tara mai, wanda ke rage yawan kuzari kuma yana rage yawan kuzari. Tashar na'ura mai aiki da karfin ruwa ta dauki accumulator karin mai samar, wanda za a iya amfani da mahara ayyuka a lokaci guda, da kuma matsa lamba na hydraulic tsarin ne barga; tsarin hydraulic yana da na'urori masu auna sigina, wanda za'a iya nunawa a kan panel na aiki don sauƙin kallo; tsarin na'ura mai aiki da karfin ruwa yana da na'urori masu auna zafin jiki, masu sanyaya da masu zafi, wanda zai iya sarrafa yawan zafin jiki yadda ya kamata, don haka man fetur yana da kyakkyawan aiki.

6. Tsarin ruwa
